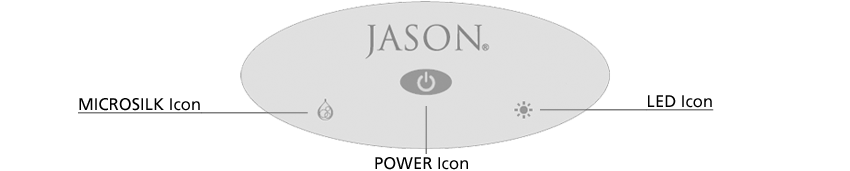

The Standard Edition Touchpad mounted on the bath features several icons used by the bather to control the bath. This section will outline the functions of the system when a particular icon is pressed. If the icon is lit WHITE, then that particular option is available to operate. If the icon is lit BLUE, that particular option is currently in operation. Unless otherwise indicated an ON/OFF function will take place with a single press on the button icon. Some functions may require the use of a long press. Also, all therapy types (WP, AM, and MS) are “interlocked” by the software so that only one therapy type can be operated at a time. A built-in timer shuts off the therapy equipment twenty (20) minutes after being activated.

Standby Mode
In Standby Mode, no icons will be lit so only the JASON logo and non-lit Power icon can be seen. If the keypad is ON but there has been no activity for one (1) hour, the keypad will revert to Standby Mode.

POWER Icon:
The POWER icon will activate the keypad. Once pressed, all available option icons will light WHITE, and the POWER icon will light BLUE. Press and hold for two (2) seconds to turn off all equipment and return to Standby Mode.

LED Icon: (Optional)
The LED icon will operate the Chromatherapy Mood Lighting system. The LED system will operate for 2 hours before turning OFF. Once pressed, the icon will turn BLUE, and the LED lights will begin a SLOW FADE mode between all the colors. A single press of the icon will progress the light to the next mode or color. Order of Colors: Slow Fade Mode, Color Step (changes each second), Purple, Green, Red, Blue, Yellow, White, then Off.

MICROSILK Icon:
The MICROSILK icon is used to activate the MicroSilk unit and the 20-minute timer. Once pressed, the microbubble generator will start, and the icon will turn BLUE. Pressing the icon again will shut the unit OFF and the icon will turn WHITE. Starting the MicroSilk unit will turn OFF any other therapy equipment running at that time.
